What a needle scaler does

An air needle scaler drives a bundle of steel needles back and forth thousands of times per minute. Each needle hits the surface independently, which is why the tool cleans irregular shapes: the needles conform to corners, seams, pipes and castings instead of bridging over them. The listings here state uses like removing rust, paint, dirt and weld slag from metal surfaces. The Ingersoll Rand 125-A states 4,800 BPM with 19 standard 1/8 in round needles; the PROSHI states 4,000 BPM with 12 hardened 3mm steel needles; the WORKPAD states 5,000 BPM with 12 needles in an 11.6 in compact body.

Air Needle Scaler vs Wire Wheel: The Real Differences

Reach: needles get into corners, around bolts and rivets, and along welds; a wire wheel needs a flat run. The 125-A listing states it cleans while reaching around bolts, rivets and welded joints. Aggression: a scaler fractures thick scale and slag; a wire wheel is better for thin rust and paint over wide panels. Finish: a scaler leaves a peened, dimpled surface that holds paint well; a wire wheel can smooth the surface without reaching into pits if you linger. Dust and debris: a scaler throws chips and scale; the PROSHI listing notes an exhaust design that keeps dust away from the body. Noise: the 125-A states 96.3 dB(A) pressure, so hearing protection is not optional.

The four needle scalers, ranked

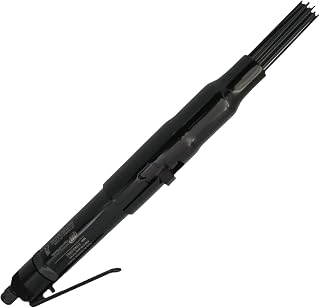

The Ingersoll Rand 125-A leads for shop work: 4,800 BPM, 1/8 in stroke, 19 standard 1/8 in round needles, 4.1 pounds and an 18.3 in length. The listing states a 9.6 m/s² vibration level, an air consumption rating of 20, and chisel compatibility for removing seam sealer, undercoating and adhesives with optional chisels. It is the most complete stated spec here.

The PROSHI is the compact pick: 12 hardened 3mm steel needles, 4,000 BPM, a 6 to 7mm working trip, and 2.49 pounds in a 6.22 by 3.07 by 1.29 in body. The listing states a touch trigger for start and stop control, easy adjustment without special tools, and an exhaust design that keeps dust away from the body with a stainless steel filter. It is stated for smaller surfaces without abrasive blasting.

The WORKPAD is the light pick: 12 needles, 5,000 BPM at free speed, an 11.6 in (295mm) body stated to reach confined spaces, and 2.9 pounds. The listing is thin on specs beyond BPM and size, but the compact length and stated confined-space reach suit tight spots.

The Ingersoll Rand EC400-NS is the attachment: it converts a compatible Edge Series tool, stated for the 114GQC air hammer, into a needle scaler with 19 durable 3mm steel needles. It weighs 2.05 pounds and screws on. It suits a shop that already owns the compatible air hammer and wants scaler function without a second tool.

Air demand and compressor size

A needle scaler is an air hog. The 125-A listing states an air consumption rating of 20 with no unit given; treat any scaler as needing a real compressor, not a pancake unit, for continuous work. Short bursts on a small tank work for spot jobs, but the tool will starve and slow down. If your compressor cannot keep up, the needles lose energy and the work gets slow. Size the compressor to the tool’s stated consumption and your duty cycle, and check the manual for the exact fitting: the 125-A states a 1/4 in air inlet.

Using a pneumatic needle scaler

Hold it at a slight angle and let the needles do the work; pressing hard slows the BPM and wears needles faster. Keep the needles perpendicular enough to strike, not skate. Wear eye protection, hearing protection and a dust mask: the 125-A states 96.3 dB(A), and scaling throws rust chips. Work in sections on heavy scale, then follow with a wire wheel or abrasive for the final finish if the surface needs it smooth. Check needle length as they wear; short needles lose reach into pits.

Frequently Asked Questions

What does a needle scaler do?

It drives a bundle of steel needles at thousands of blows per minute to fracture rust, scale, paint and weld slag off metal, especially on irregular surfaces the needles can conform to.

How much air does a needle gun use?

A lot. The 125-A listing states an air consumption rating of 20. Use a compressor sized for continuous air tools, not a small pancake tank, for steady work.

Needle scaler or wire wheel for weld slag?

The needle scaler. The listings state weld slag removal for the scaler, and the needles fracture slag in corners and along welds where a wire wheel bridges over.

Which scaler here is the most compact?

The PROSHI at 6.22 by 3.07 by 1.29 inches and 2.49 pounds, stated for smaller surfaces. The WORKPAD at 11.6 inches is the compact reach pick for confined spaces.

Can I get scaler function without buying a scaler?

The Ingersoll Rand EC400-NS is an attachment that converts a compatible Edge Series air hammer, stated for the 114GQC, into a needle scaler with 19 steel needles.

Do I need hearing protection?

Yes. The 125-A states 96.3 dB(A) sound pressure. Eye protection and a dust mask are also sensible given the chips and dust.
