Best Tire Inflator with Gauge (2026): 5 Top Picks Compared

Compare the picks

Specifications are manufacturer rated, as published on each listing and collected 9 October 2026. Where a listing contradicts itself, both figures are shown.

How we scored them

Each inflator is scored out of 10 on performance, build, value, safety and warranty, with the weights published on our How We Pick page. Only one model states an ANSI accuracy calibration rating, while four give no safety listing, and one provides no warranty term.

Scores run from 9.2 to 9.8: each product’s point total is placed on that range, so more points always means a higher score.

What the listings tell you

We examined five tire inflator listings in detail. Only one listing stated an official accuracy calibration standard, while three stated maximum pressures of 160 or 200 PSI. Four listings included stated warranty terms, ranging from one year to lifetime coverage, while one listing omitted warranty information entirely. Multiple listings showed clear contradictions between bullet points and specification tables, including impossible tool weights and conflicting voltage specifications.

Best tire inflator with gauge buying guide

Digital versus analog gauges

Digital inflator gauges provide exact readouts with 0.1 or 0.5 PSI resolution and backlit screens that excel in dark garage bays. However, they depend on AAA batteries that eventually require replacement. Analog Bourdon-tube gauges operate mechanically without batteries, displaying pressure on physical dial or stick scales in 2-lb increments. Choose digital when exact tire pressure matters for vehicle handling, and analog when you want a tool that functions whenever connected to air.

Chuck styles and valve access

The air chuck determines how easily and securely you connect to the valve stem. Thread-on or lever-locking chucks hold firmly onto tire threads, freeing your hands during inflation and preventing pressure leaks. Dual-head chucks feature two opposing heads: straight-foot heads align with inner wheels on dually trucks, while angled heads reach tight spokes on passenger cars, motorcycles, and trailers.

Lock-on mechanisms differ significantly across designs. Patented quick-release collars snap securely over external stem threads, creating an airtight seal with a quick-release sleeve. In contrast, straight-foot truck chucks feature internal locking threads that bite onto valve threads as you push, securing the chuck in place so you can manage inflation without fighting tire stems.

Pressure range and resolution

Standard inflator gauges provide scales up to 160 or 200 PSI. Ensure the gauge range comfortably covers your vehicles, and look for fine graduation marks or digital tenths to set pressure accurately. Mechanical gauges in this comparison read in 2-lb increments, while digital displays read down to 0.1 or 0.5 PSI.

Air supply and compressor CFM

Inline tire inflator gauges require a compressed air source to pump tires. Because tire inflation involves short bursts rather than continuous volume, inflators demand little air flow compared to rotary air tools. For guidelines on shop air requirements and compressor sizing, see what CFM do air tools need. Pairing your inflator with a pancake air compressor for tire inflation creates a convenient, portable garage setup.

Hose reach and fittings

An inflator hose between 15 and 18 inches allows you to read the pressure gauge comfortably while standing beside the wheel. Braided stainless steel hoses resist abrasion from garage floors and sharp vehicle edges better than bare rubber lines. Standard 1/4-inch NPT quick-connect plugs fit universal automotive couplers, while keeping your air hose organized with an air compressor hose reel protects air lines from kinks.

Rebuildable cartridges and shop maintenance

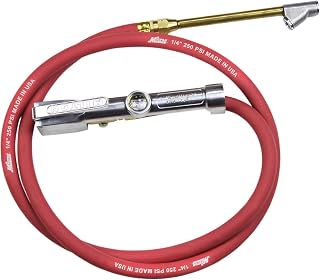

Shop air tools face continuous exposure to moisture, dirt particles, and dropping onto concrete floors. When evaluating long-term value, consider whether the internal mechanisms can be serviced. The Milton models highlight fully replaceable gauge cartridges and valve cartridges, allowing you to unscrew worn internal parts and install fresh components rather than discarding the entire tool. Digital inflators like the JACO FlowPro instead focus on rugged external protection, featuring powder-coated solid steel bodies and braided stainless steel hoses that resist damage. Keeping moisture out of pneumatic gauges requires draining compressor condensation regularly. Learning how to oil air tools properly protects pneumatic equipment, though inline tire inflators should receive clean, dry air without excess oil mist to prevent coating the gauge glass and tire valve seals.

Frequently Asked Questions

What is the best tire inflator with gauge for a home garage?

A pneumatic digital inflator with a solid metal body, ANSI-calibrated accuracy, a locking tire chuck, and a braided hose is ideal for home garages with an air compressor. It provides fast fills, pressure relief, and exact pressure readings in a single tool.

Why choose a digital tire inflator gauge over an analog dial?

Digital gauges display numerical readings in 0.1 or 0.5 PSI increments, eliminating parallax error and guesswork on small dial markings. Backlit LCD screens also make checking pressures easy in dimly lit workshops.

What air pressure and CFM does a tire inflator gauge need?

Tire inflator gauges operate on typical workshop compressor pressure up to the 160 or 200 PSI maximum rating of the tool. Because inflation happens intermittently, standard garage compressors supply ample volume for inflating car and truck tires.

What is the difference between straight foot and angled dual chucks?

Straight-foot chucks push straight onto valve stems, which is essential for reaching inward-facing stems on inner dually truck wheels. Angled chucks hook backward onto standard outer wheels and tight passenger car rims.

Can a tire inflator gauge deflate overinflated tires?

Yes. Quality inflator gauges feature an integrated air bleeder button or pressure release valve. Depressing the bleeder vents excess air without disconnecting the chuck from the tire valve.
