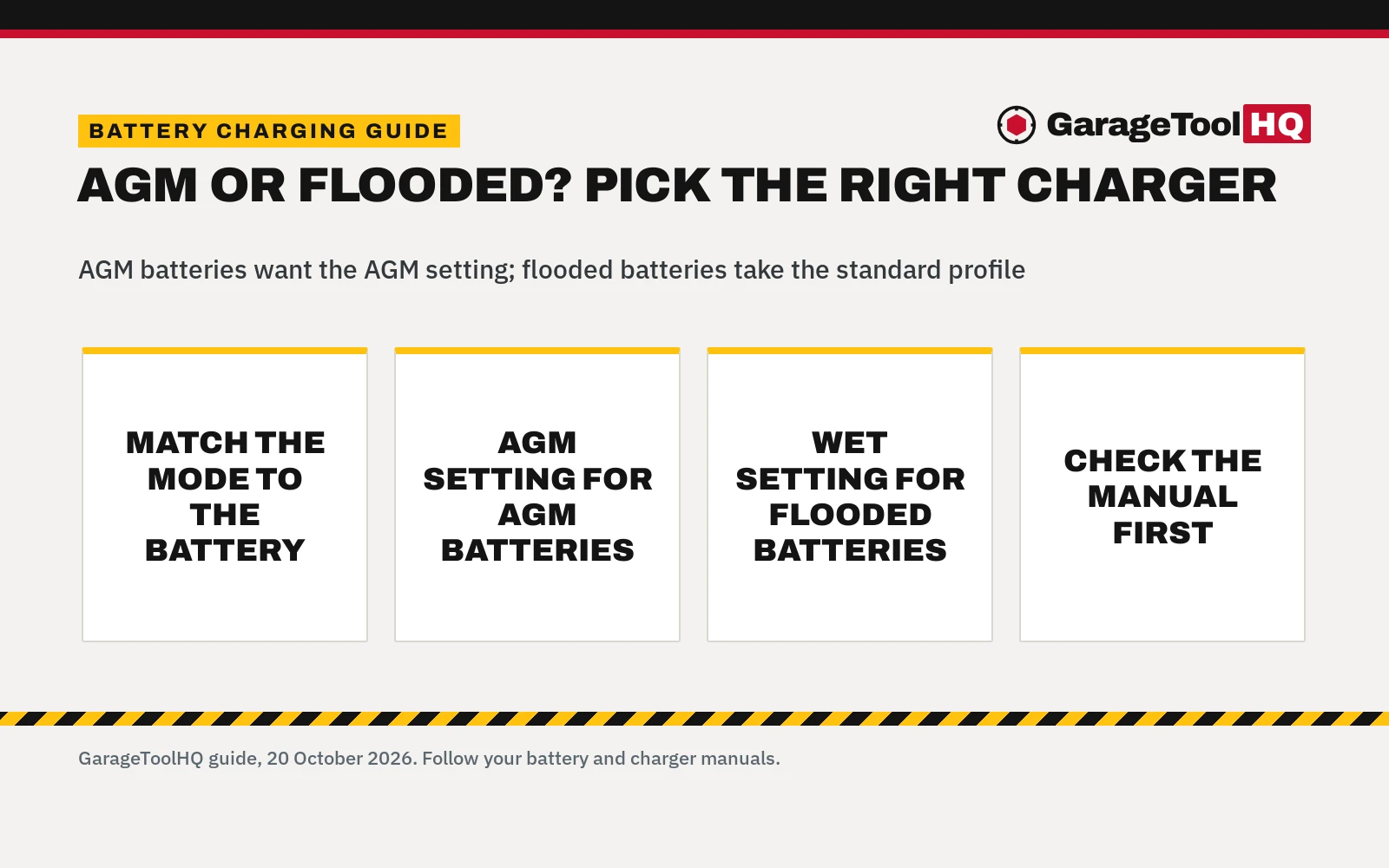

Agm vs Flooded Battery Charger: Which One Should You Buy?

GarageToolHQ earns a commission when you buy through links on our product pages, at no extra cost to you. Read our affiliate disclosure.

Below: why the battery type changes the charge, what each mode on a multi-chemistry charger does, and four chargers that cover both AGM and flooded, ranked by how well their stated features answer this question.

Agm vs Flooded Battery Charger: Why the Mode Matters

Flooded batteries hold liquid electrolyte that can vent while charging. AGM batteries hold the electrolyte in glass mats and stay sealed, which makes them more sensitive to being fed the wrong voltage profile. A charger built for flooded batteries only keeps pushing the flooded profile whether the sealed battery wants it or not.

That is why multi-mode chargers exist. The listings below show the pattern: separate selections for WET and for AGM, plus temperature compensation that trims the voltage for hot and cold days. Picking the mode that matches the label on your battery is what keeps the charge correct.

Which battery is on your clamps?

Read the battery’s own label before you buy or connect anything. The YDBAO charger lists CAR, WET and MOTO modes alongside an AGM/GEL/LiFePO4 mode, which shows the split plainly: flooded-style batteries take the WET setting, and AGM batteries take the AGM setting. GEL, SLA and VRLA also appear on that charger’s compatibility list, so if your battery says one of those, use the AGM-family mode the maker lists. When the label is unreadable, look up the battery’s model in the battery maker’s documents before you set the charger.

What each charging mode is for

• WET (flooded): the standard profile for vented lead-acid batteries.
• AGM: the adjusted profile for sealed absorbed-glass-mat batteries.
• Maintainer/float: drops to a holding charge once the battery is full, so the charger can stay connected during storage.
• Pulse repair / desulfation: a recovery cycle the makers say reverses sulfation and acid stratification in lead-acid batteries.

The YDBAO listing prints a warning worth repeating: do not let the charger run unattended for more than 12 hours. Read the mode chart in your charger’s manual and set the mode before the first job, not after.

Four chargers that cover AGM and flooded

Ranked by how well each listing’s stated features fit the AGM-versus-flooded question. For model-by-model comparisons, see our picks for the best car battery charger and the best battery charger maintainer.

1. YDBAO 12V 10A Smart Charger. The most on-topic listing for this question: it prints five modes including CAR, AGM/GEL/LiFePO4, WET, MOTO and PULSE REPAIR, so AGM and flooded each get a named setting. The LCD shows voltage, current, battery level, ambient temperature and the summer/winter mode, and the maker lists 8 layers of protection with reverse polarity, short circuit, overheating and overcurrent safeguards plus automatic temperature compensation. The listing states CE, FCC and UL marks, a 1-year warranty, a 110-240V (50-60Hz) input, and a body of 2.76 by 5.12 by 9.06 inches weighing 0.58 kg.

2. Schumacher SC1308. A 6/12V charger with a 100A engine start, 30A boost and 6A charge, listed for standard, AGM, deep-cycle and 12V lithium batteries. It adds built-in battery and alternator health checks plus a desulfation mode the maker says helps revive batteries that have lost their charge. The spec table states CSA certification, a 1-year warranty, alligator clamps, and dimensions of 10.13 by 10.5 by 7 inches at 12.6 pounds. Note the listing’s 30A amperage figure sits next to the 6A headline rate, so read the mode labels on the unit and set it for the battery in front of you.

3. NOCO GEN5X1. A 12V 5A single-bank onboard charger with selectable 12V, 12V AGM, 12V Lithium and 12V Repair modes, IP68 waterproofing, and a thermal sensor that adjusts charging for ambient temperature. The listing states it charges batteries from as low as 1 volt and offers a Force Mode that begins charging batteries down to zero volts. It comes with 72-inch DC cables and 3/8-inch eyelets, a 72-inch AC cable and mounting screws, and a 3-year warranty. At 7.22 by 5.16 by 5.16 inches and 2.5 pounds it mounts in the boat; with the lowest charge current here it suits maintenance and smaller banks.

4. FORM 36V Golf Cart Charger. An 18A charger built for 36V EZGO TXT golf carts with a D-style plug, listed for lead-acid, AGM, LiFePO4 and lithium batteries, with a set-and-forget maintenance mode and IP67 waterproofing. The listing states a 24-month warranty with a 60-month extended warranty available, dimensions of 5.25 by 10 by 3 inches, and a weight of 5.5 pounds. It ranks last here only because 36V suits one job; for a golf cart fleet it is the purpose-built option.

Matching the charger to your battery

1. Read the battery label. AGM, GEL, SLA and VRLA all appear on the YDBAO compatibility list; flooded batteries take the WET setting.
2. Pick the current you need. A 10A or 18A unit moves a car or cart battery faster; 5 to 6A suits maintenance and overnight work.
3. Set the mode before connecting power. Every charger here asks you to confirm the battery type first.
4. Use temperature compensation where offered. The YDBAO, NOCO and Schumacher listings all mention it; it trims voltage for summer and winter.
5. Maintain stored batteries. A maintainer mode keeps a parked battery ready; our guide on leaving a maintainer on all winter covers the details.

Frequently Asked Questions

Can I charge an AGM battery with a flooded (WET) charger?

Not safely as a habit. A charger without an AGM setting feeds the flooded profile, which the sealed battery was not designed for. Use a charger with a stated AGM mode, like the YDBAO or NOCO above, and select it before charging.

What happens if I pick the wrong mode?

The battery gets the wrong voltage profile, which shortens its life. That is why the listings tell you to check the battery type before use: the mode buttons are the whole point of a multi-chemistry charger.

Can one charger handle both AGM and flooded batteries?

Yes. Three of the four chargers above list both AGM and standard or WET support. Set the mode to match whichever battery is on the clamps.

Will a 36V golf cart charger work on a 12V car battery?

No. The FORM unit is a 36V charger with a golf cart D-style plug; voltage must match the battery. For 12V car, truck, motorcycle and boat batteries, pick one of the 12V chargers above.

Do I need temperature compensation?

It helps. The YDBAO and NOCO listings state automatic temperature compensation, which adjusts voltage for hot and cold conditions. If you charge in an unheated garage, favor a charger that lists it.

How long will charging take?

It depends on the charger’s current and how far the battery is drawn down; the listings here state charge currents from 5A to 18A. Our guide on how long it takes to charge a car battery walks through the math.

Related: battery charger vs battery maintainer, trickle charger vs float charger, the best car battery charger and the Battery Tender Junior review.
