Car Ramps with Jacks Built in: 4 Hydraulic Ramps Compared (2026)

Compare the picks

*Specifications are manufacturer rated, as published on each listing and collected 12 October 2026.

How we scored them

Each ramp set is scored out of 10 on performance, build, value, safety and warranty, following the method on our How We Pick page. Listings that state functional safety lock pins or automatic locking mechanisms earn partial safety credit, while models without stated mechanical locks receive zero. Listings with conflicting specs or unstated weight lose points on value and build.

Scores run from 9.2 to 9.8: each product’s point total is placed on that range, so more points always means a higher score.

What the listings tell you

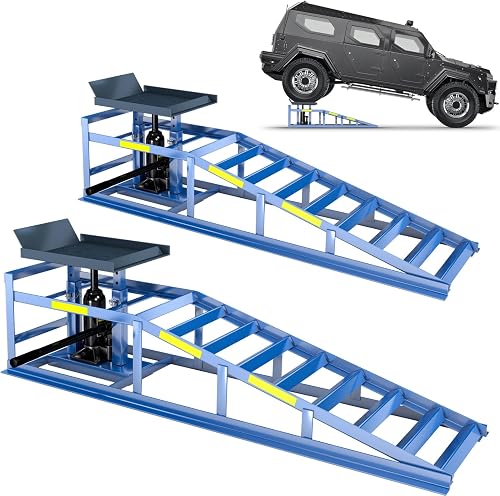

We evaluated four hydraulic car ramp listings. All four specify heavy-duty steel or structural metal builds and rated capacities of 5 tons (10,000 to 11,065 lbs). Maximum platform lift heights span from 14.3 in to 15.74 in, and three of the four models advertise safety lock pins or automatic locking mechanisms. However, none of the listings state an ASME PASE safety standard certification, and none provide a concrete warranty term.

Contradictions between listing titles, bullet points and specification tables are common in this product category. One listing states a 5-ton capacity in the title while its specification table lists 3T & 5T Ton. Another model states 11,060 lbs in the bullets but lists 10,000 pound in the table, while reversing length and height dimensions. A third model presents three different lift heights across its title, bullets and table (9.8 to 15 in, 11.42 to 15.74 in, and 10.63 in). In each case, our review relies on the title and bullet descriptions over automated catalog tables.

Buying guide: car ramps with jacks built in

Hydraulic lift vs fixed ramps

Traditional vehicle ramps provide a fixed incline that lifts tires to a set height. While that elevation helps with quick drain plug access, larger jobs like transmission servicing or suspension work often demand greater clearance. Car ramps with built in hydraulic jacks let you drive onto the ramp platform at an entry height between 9 in and 9.84 in, then pump the integrated hydraulic cylinders to reach maximum heights between 14.3 in and 15.74 in. This dual-stage setup provides the clearance of a floor jack while keeping the vehicle tires supported on wide steel platforms.

Safety pins and mechanical locks

Never get under a vehicle on a jack alone, including hydraulic ramps held up only by fluid pressure. Hydraulic cylinders rely on fluid seals and check valves that can leak down over time or fail under pressure. Quality steel ramps feature mechanical safety lock pins or automatic locking mechanisms that physically lock the elevated steel platform in position. Once the hydraulic jack raises the platform to working height, insert the safety pin or engage the automatic lock, then relieve hydraulic pressure so the solid steel structure carries the weight. For maximum garage safety, place rated stands on solid level ground under factory owner’s manual lift points as secondary backup.

Approach clearance and vehicle height

Low-profile sports cars and front-wheel-drive sedans with extended front air dams can scrape against steep ramp inclines. Before driving onto any ramp, confirm that the bumper clears the initial approach slope. When raising the hydraulic platforms to heights between 14.3 in and 15.74 in, check your garage ceiling height and overhead clearances to ensure the vehicle hood or roof remains clear of garage door tracks, openers and rafters.

Footprint and garage floor stability

Stable lifting requires a solid, level concrete garage floor. The four ramp sets reviewed here feature base lengths ranging from 44.88 in to 45.27 in and base widths from 10.83 in to 13.5 in. A broad footprint distributes the vehicle load and prevents rocking during lifting. Always position ramps on flat concrete, center the tires on the patterned platform treads, set the vehicle parking brake, and place chocks behind the rear tires.

For more details on comparing lifting gear, read our car ramps vs jack stands breakdown.

Garage Fit Check

• Floor space: ensure your garage floor provides at least 45 to 45.27 in of clear length and 10.83 to 13.5 in of width for each ramp base on level, solid concrete.
• Clearance overhead: verify that your ceiling height accommodates your vehicle being lifted between 14.3 in and 15.74 in without contacting garage doors or lighting.
• Storage and handling: plan storage space for heavy steel equipment, as individual ramp pairs weigh 36 kg or up to 83.8 pounds.
• Pre-lift inspection: confirm that hydraulic release valves are closed, tire platform treads are free of grease, and safety lock pins are inspected before driving onto the ramps.

Frequently Asked Questions

How do car ramps with built in jacks work?

You place the ramps on level ground in front of the vehicle tires, drive up the initial incline until the wheels sit centered on the tire platforms, set the parking brake, and chock the remaining tires. Once the car is stationed on the platforms, you use the integrated hydraulic jacks to pump the platforms up to your desired working height, between 9 in and 15.74 in depending on the model, then secure the mechanical safety pins or automatic locks.

Are car ramps safe to work under?

They are safe only when used on a solid, level concrete surface with mechanical locks engaged. Never get under a vehicle on a jack alone, and never rely solely on hydraulic fluid pressure. Always insert the supplied safety lock pins or engage the automatic locking mechanisms to bear the weight on solid steel. Place rated jack stands on solid level ground under factory owner’s manual lift points as secondary backup, and chock the wheels that remain on the ground.

How to use car ramps with jack stands?

After driving onto the ramps and pumping the hydraulic platforms to the desired height, insert the safety lock pins to secure the ramps mechanically. Next, position rated jack stands on solid level ground under the vehicle manufacturer lift points specified in the owner’s manual. Raise the stand saddles close to the vehicle frame lift points without taking weight off the ramps, providing an independent backup barrier while you work underneath.

Can car ramps fail?

Ramps can fail if overloaded beyond their rated capacity, used on soft or uneven ground, or if tires are driven off the edge of the platforms. With hydraulic ramps, hydraulic seals can also leak pressure. That is why you must never get under a vehicle supported only by hydraulic pressure. Always verify the rated capacity, between 10,000 lb and 11,065 lb for the models compared here, engage the mechanical safety locks, and use backup stands.

Do I need car ramps to change oil?

Car ramps are not strictly required if your vehicle has enough ground clearance to reach the oil drain plug and filter, or if you use a floor jack with rated stands. However, drive-on ramps with built-in jacks make oil changes faster and more comfortable by lifting the vehicle nose up to 15 in or more, giving you ample room to position an oil drain pan and maneuver a filter wrench without jacking the car from chassis pinch welds.
